Chevington Services | CV450H Horizontal Baler

Products > Waste Processing Systems > CV450H

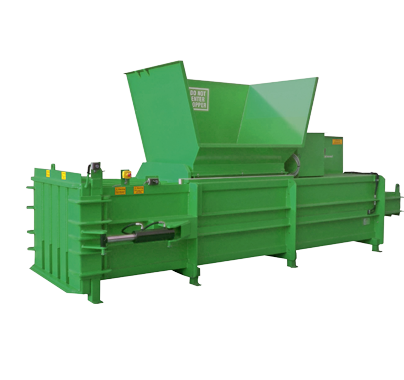

The CV450H Horizontal Baler has a throughput of 1 tonne per hour from a 7.5kw power pack, making it suitable for factories or small waste processing units.

It has a wide feed aperture for large bulk material up to 1400mm x 1050mm. The CV450H will produce mill sized bales of cardboard weighing 450-500kg.

There are various options available to improve the specification, such as 11kw and 15kw powerpacks to increase through put, conveyor feed hoppers and an 1100 litre binlift.

The vertical tie system makes this machine easy to use & quick to tie

Large feed opening, ideal for pallet sized cardboard and Produces bales of cardboard up to 500kg.

Features
Shear blade on top of press plate, Magic eye start-up, Automatic cut out when bale is full, Range of hoppers and Simple operating controls.

Benefits
Allows material to be easily cut after feeding, Operator can continuously feed machine, saving on down time, Operator is informed when the bale is ready to be tied, Enables easier feeding of machine, saving on labour time.

Download:
To view full details on the CV450H Horizontal Baler, please download the specification sheet which will give you full information on this machine.

Download Specification Sheet [+]
